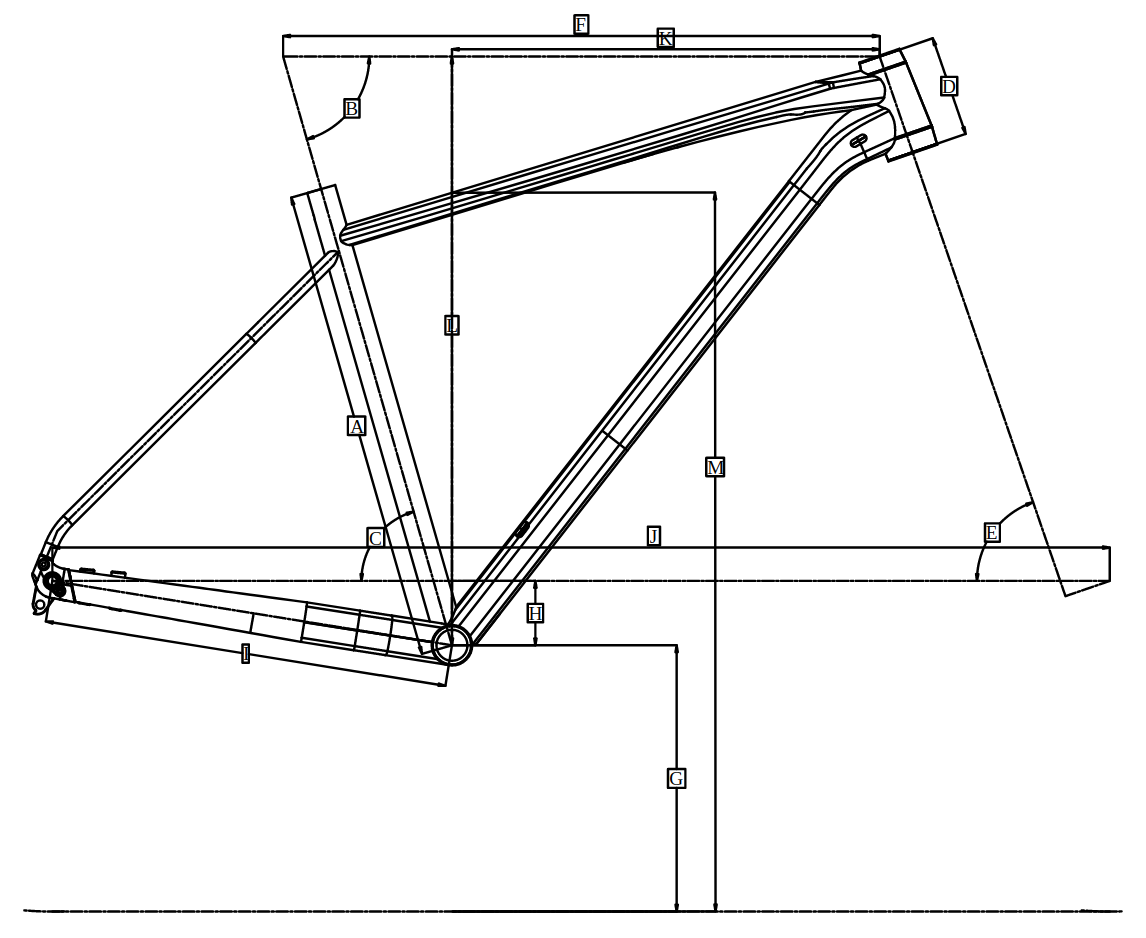

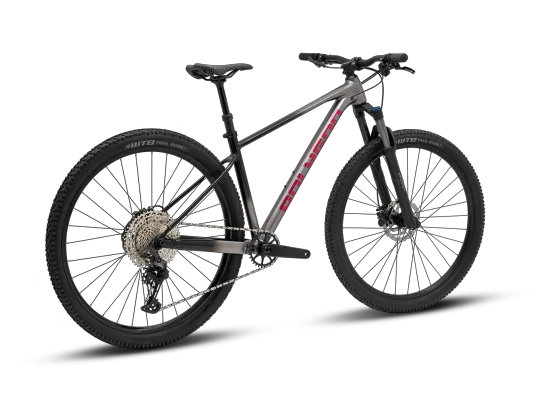

טבלת גיאומטריה - POLYGON XTRADA 6 2026
נתוני גיאומטריה לפי מידה
| SIZE | S | M | L | XL |
| A Seat Tube Length | 390 | 430 | 450 | 470 |
| B Seat Tube Angle | 73° | 73° | 73° | 73° |
| C Effective Seat Tube Angle | 74° | 74° | 74° | 74° |
| D Head Tube Length | 91 | 100 | 110 | 120 |
| E Head Tube Angle | 67° | 67° | 67° | 67° |
| F Effective Top Tube | 586 | 609 | 632 | 655 |
| G BB Height | 313 | 313 | 313 | 313 |
| H BB Offset | 60 | 60 | 60 | 60 |
| I Chainstay Length | 432 | 432 | 437 | 437 |
| J Wheelbase | 1121 | 1145 | 1174 | 1198 |
| K Frame Reach | 410 | 430 | 449 | 470 |
| L Frame Stack | 620 | 629 | 638 | 647 |
| M Standover Height | 725 | 756 | 771 | 788 |
S
A Seat Tube Length390
B Seat Tube Angle73°
C Effective Seat Tube Angle74°
D Head Tube Length91
E Head Tube Angle67°
F Effective Top Tube586
G BB Height313
H BB Offset60
I Chainstay Length432
J Wheelbase1121
K Frame Reach410
L Frame Stack620
M Standover Height725
M
A Seat Tube Length430
B Seat Tube Angle73°
C Effective Seat Tube Angle74°
D Head Tube Length100
E Head Tube Angle67°
F Effective Top Tube609
G BB Height313
H BB Offset60
I Chainstay Length432
J Wheelbase1145
K Frame Reach430
L Frame Stack629
M Standover Height756
L
A Seat Tube Length450
B Seat Tube Angle73°
C Effective Seat Tube Angle74°
D Head Tube Length110
E Head Tube Angle67°
F Effective Top Tube632
G BB Height313
H BB Offset60
I Chainstay Length437
J Wheelbase1174
K Frame Reach449
L Frame Stack638
M Standover Height771
XL
A Seat Tube Length470
B Seat Tube Angle73°
C Effective Seat Tube Angle74°
D Head Tube Length120
E Head Tube Angle67°
F Effective Top Tube655
G BB Height313
H BB Offset60
I Chainstay Length437
J Wheelbase1198
K Frame Reach470
L Frame Stack647
M Standover Height788
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
