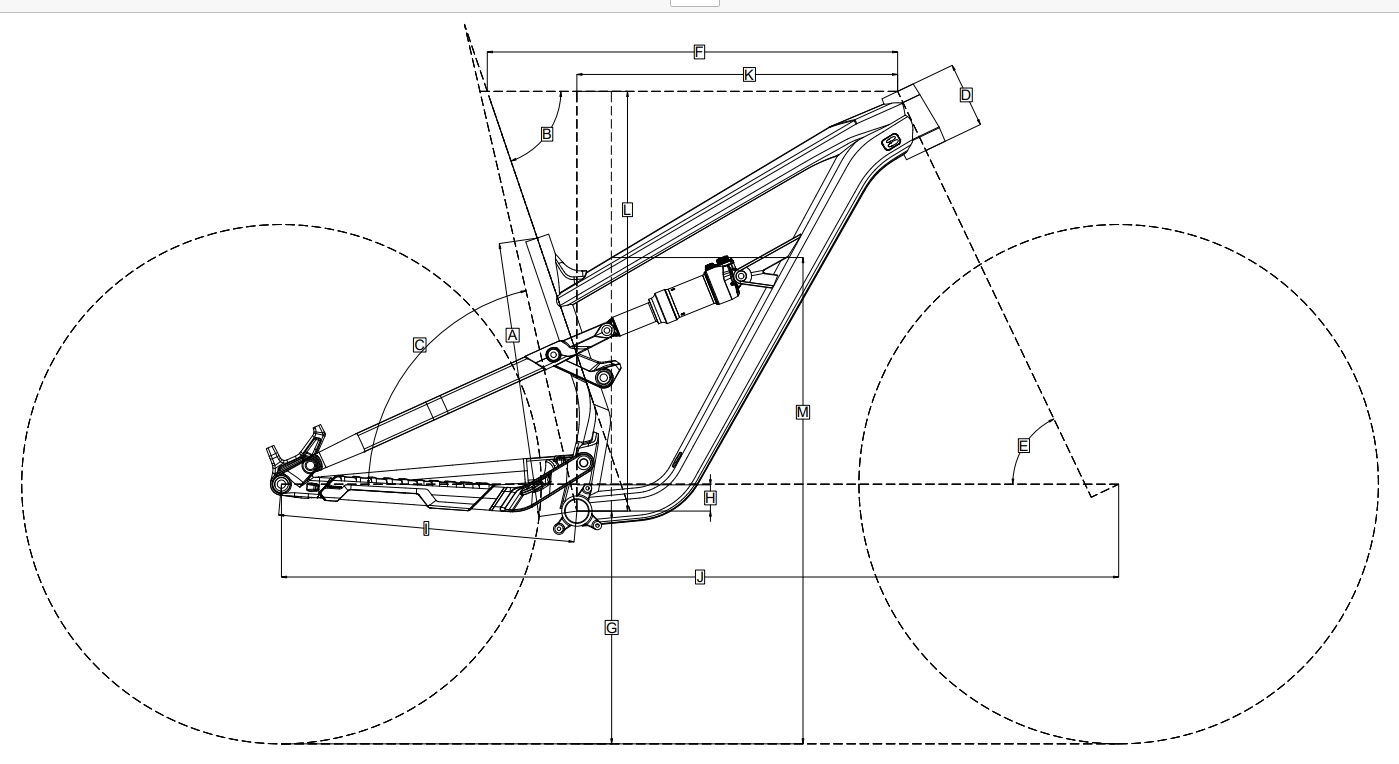

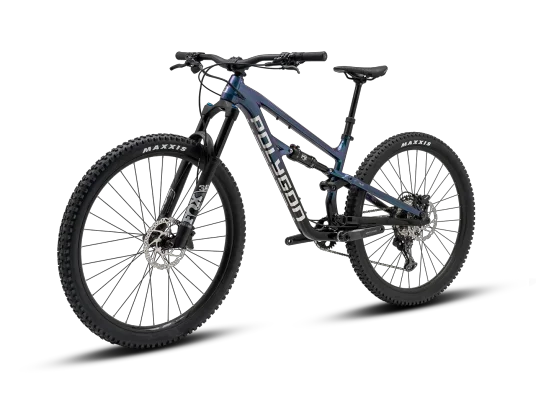

טבלת גיאומטריה - POLYGON SISKIU T8 2026
נתוני גיאומטריה לפי מידה
| SIZE | S | M | L | XL |
| A Seat Tube Length | 390 | 400 | 415 | 430 |
| B Seat Tube Angle | 71.2° | 71.2° | 71.2° | 71.2° |
| C Effective Seat Tube Angle | 77° | 77° | 76° | 77° |
| D Head Tube Length | 89 | 95 | 110 | 125 |
| E Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| F Effective Top Tube | 568 | 595 | 619 | 644 |
| G BB Height | 337.5 | 337.5 | 337.5 | 337.5 |
| H BB Offset | 39 | 39 | 39 | 39 |
| I Chainstay Length | 430 | 430 | 432 | 430 |
| J Wheelbase | 1186 | 1214 | 1240 | 1267 |
| K Frame Reach | 440 | 465 | 485 | 505 |
| L Frame Stack | 604 | 609 | 622 | 636 |
| M Standover Height | 704 | 705 | 711 | 723 |
S
A Seat Tube Length390
B Seat Tube Angle71.2°
C Effective Seat Tube Angle77°
D Head Tube Length89
E Head Tube Angle64.5°
F Effective Top Tube568
G BB Height337.5
H BB Offset39
I Chainstay Length430
J Wheelbase1186
K Frame Reach440
L Frame Stack604
M Standover Height704
M
A Seat Tube Length400
B Seat Tube Angle71.2°
C Effective Seat Tube Angle77°
D Head Tube Length95
E Head Tube Angle64.5°
F Effective Top Tube595
G BB Height337.5
H BB Offset39
I Chainstay Length430
J Wheelbase1214
K Frame Reach465
L Frame Stack609
M Standover Height705
L
A Seat Tube Length415
B Seat Tube Angle71.2°
C Effective Seat Tube Angle76°
D Head Tube Length110
E Head Tube Angle64.5°
F Effective Top Tube619
G BB Height337.5
H BB Offset39
I Chainstay Length432
J Wheelbase1240
K Frame Reach485
L Frame Stack622
M Standover Height711
XL
A Seat Tube Length430
B Seat Tube Angle71.2°
C Effective Seat Tube Angle77°
D Head Tube Length125
E Head Tube Angle64.5°
F Effective Top Tube644
G BB Height337.5
H BB Offset39
I Chainstay Length430
J Wheelbase1267
K Frame Reach505
L Frame Stack636
M Standover Height723
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
