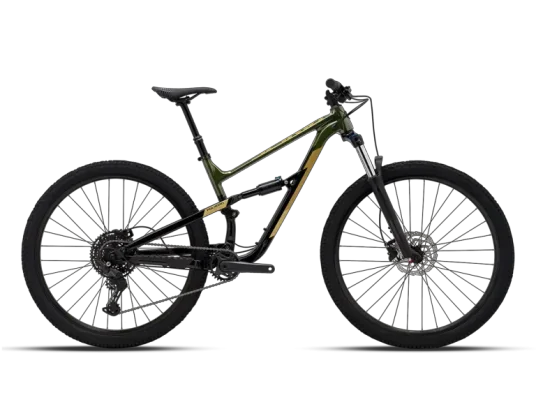

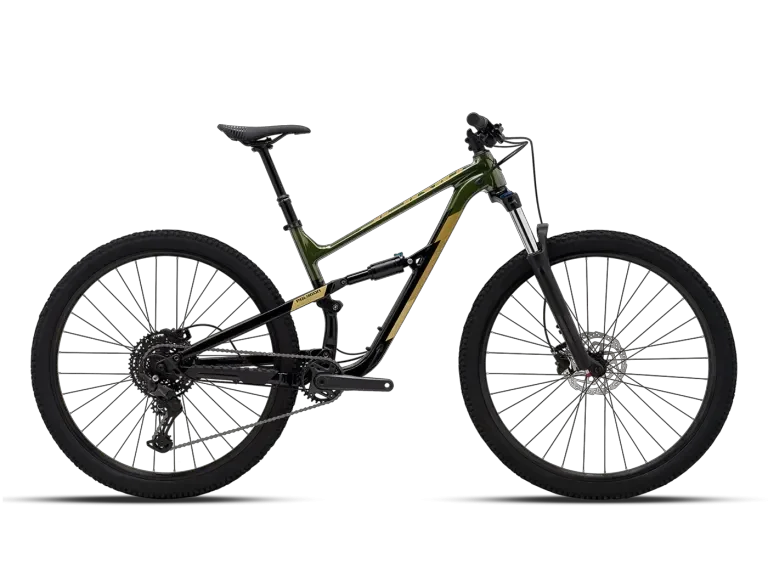

טבלת גיאומטריה - POLYGON SISKIU D6
נתוני גיאומטריה לפי מידה - M-XL 29
| Geometry | M 29" | L 29" | XL 29" |
| Height | 165-175 cm | 175-185 cm | 185-195 cm |
| A Seat Tube Length | 435 | 487 | 522 |
| B Seat Tube Angle | 68.7° | 68.7° | 68.7° |
| C Effective Seat Tube Angle | 76° | 76° | 76° |
| D Head Tube Length | 102 | 112 | 122 |
| E Head Tube Angle | 67.5° | 67.5° | 67.5° |
| F Effective Top Tube | 603.9 | 624.3 | 646.7 |
| G BB Height | 326 | 326 | 326 |
| H BB Offset | 47 | 47 | 47 |
| I Chainstay Length | 436 | 436 | 436 |
| J Wheelbase | 1165 | 1189 | 1213 |
| K Frame Reach | 445 | 465 | 485 |
| L Frame Stack | 606.7 | 615.9 | 625.2 |
| M Standover Height | 698 | 733 | 761 |
M 29"
Height165-175 cm
A Seat Tube Length435
B Seat Tube Angle68.7°
C Effective Seat Tube Angle76°
D Head Tube Length102
E Head Tube Angle67.5°
F Effective Top Tube603.9
G BB Height326
H BB Offset47
I Chainstay Length436
J Wheelbase1165
K Frame Reach445
L Frame Stack606.7
M Standover Height698
L 29"
Height175-185 cm
A Seat Tube Length487
B Seat Tube Angle68.7°
C Effective Seat Tube Angle76°
D Head Tube Length112
E Head Tube Angle67.5°
F Effective Top Tube624.3
G BB Height326
H BB Offset47
I Chainstay Length436
J Wheelbase1189
K Frame Reach465
L Frame Stack615.9
M Standover Height733
XL 29"
Height185-195 cm
A Seat Tube Length522
B Seat Tube Angle68.7°
C Effective Seat Tube Angle76°
D Head Tube Length122
E Head Tube Angle67.5°
F Effective Top Tube646.7
G BB Height326
H BB Offset47
I Chainstay Length436
J Wheelbase1213
K Frame Reach485
L Frame Stack625.2
M Standover Height761
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
