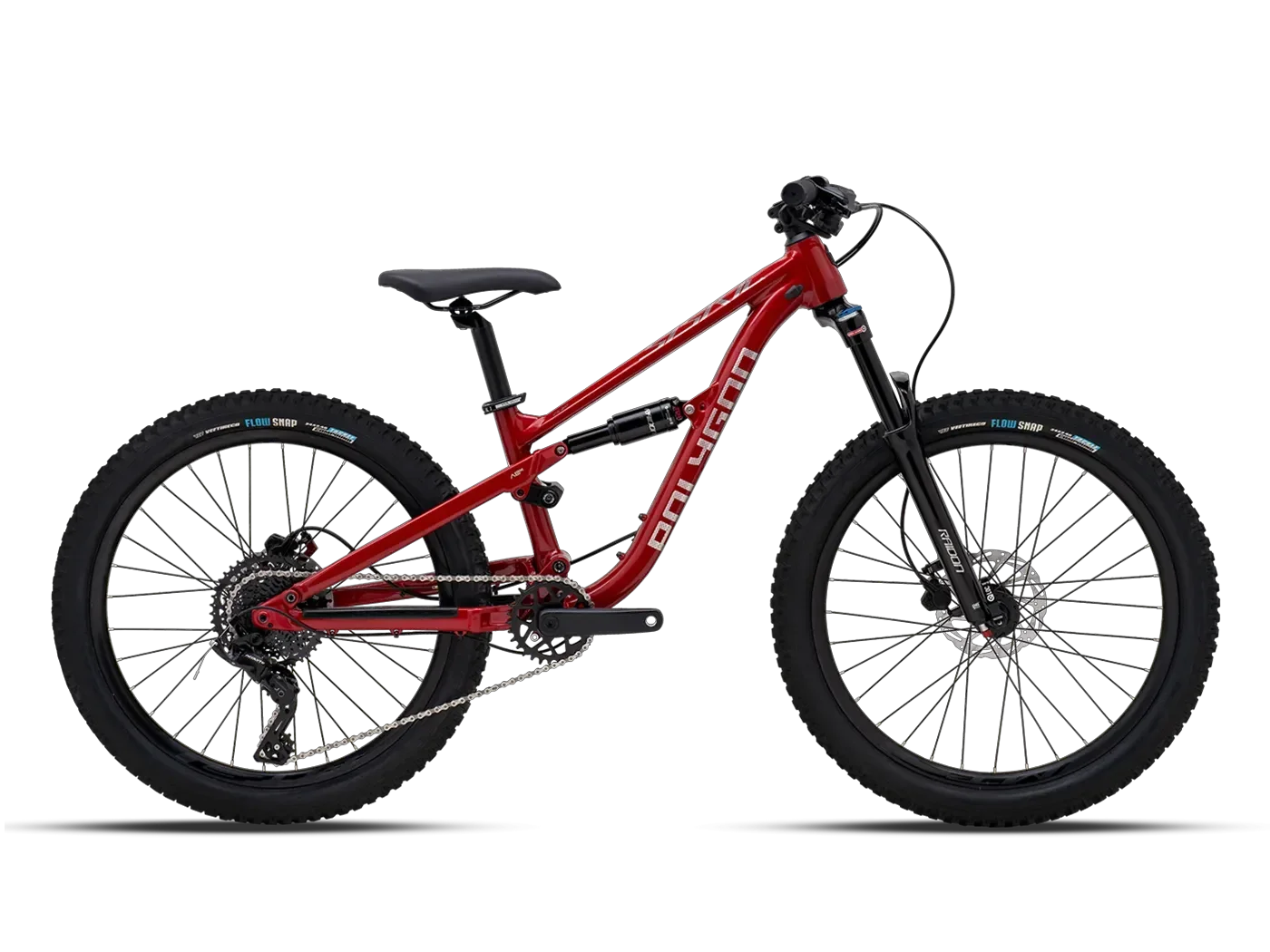

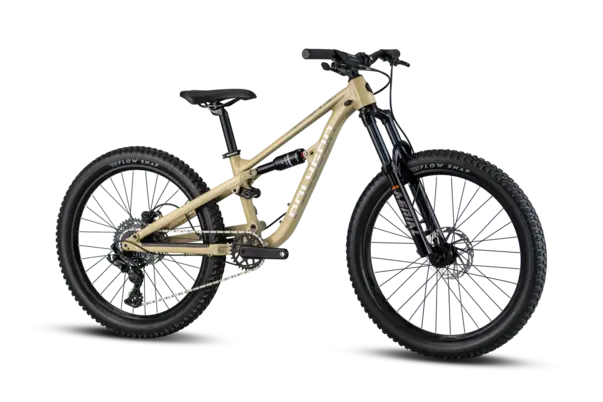

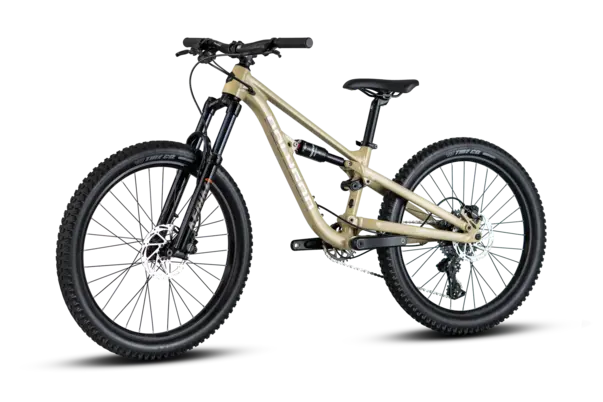

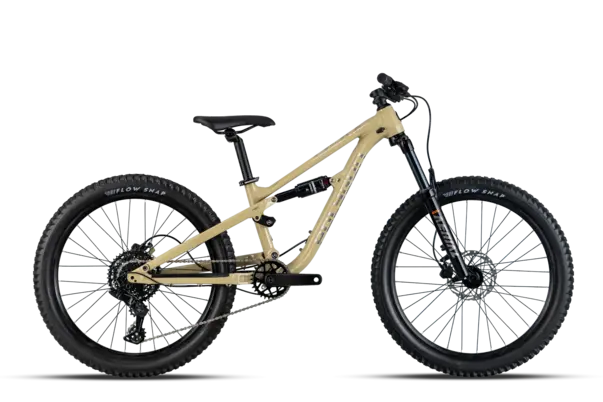

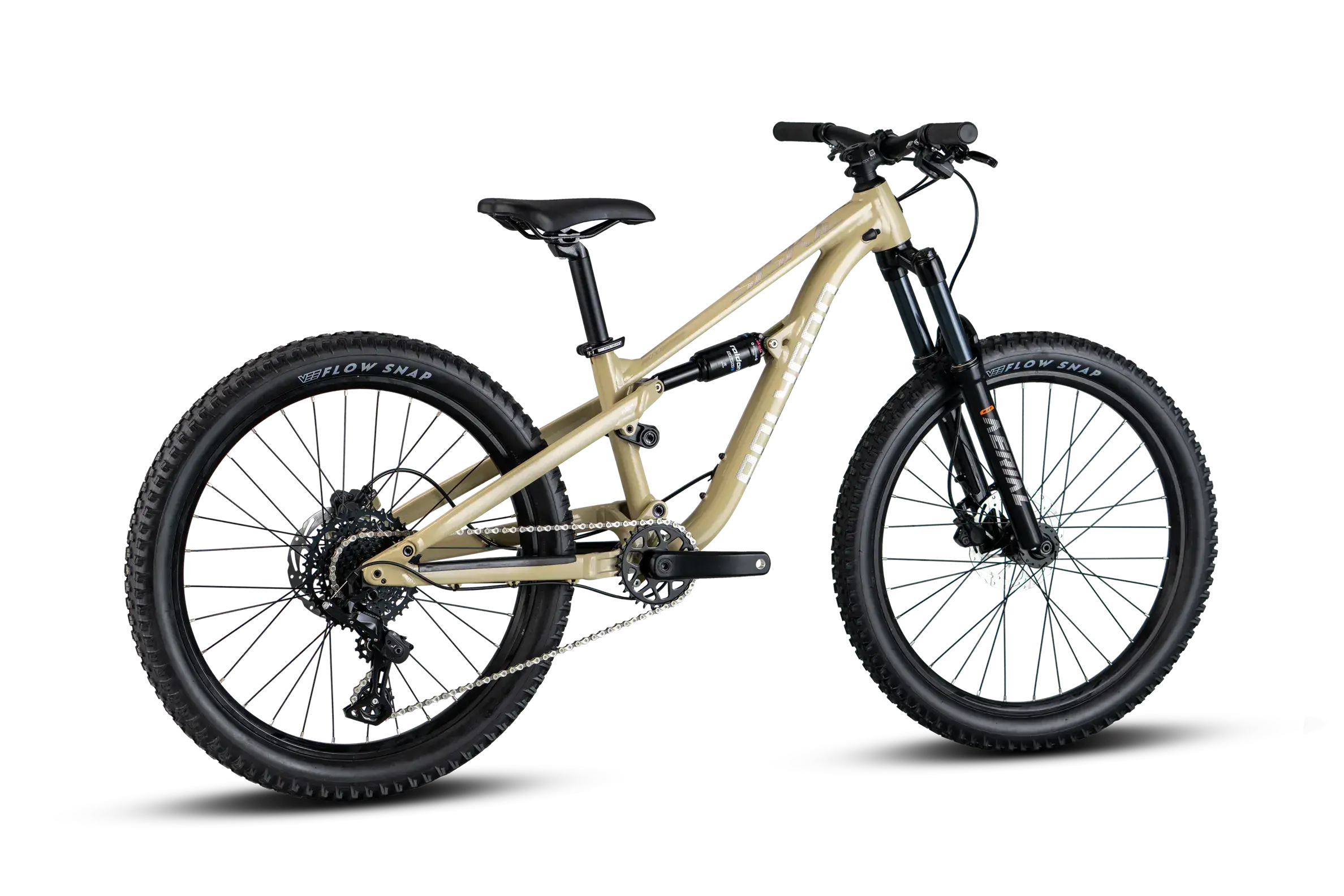

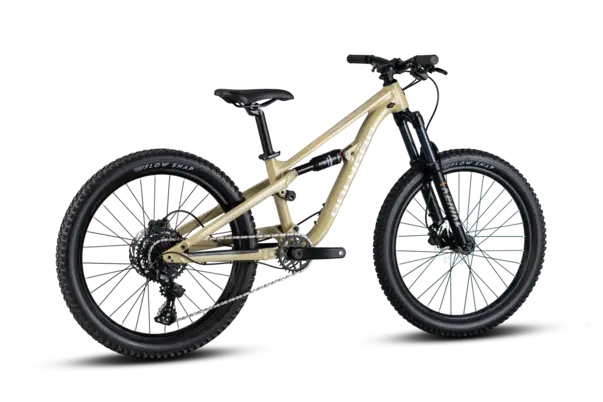

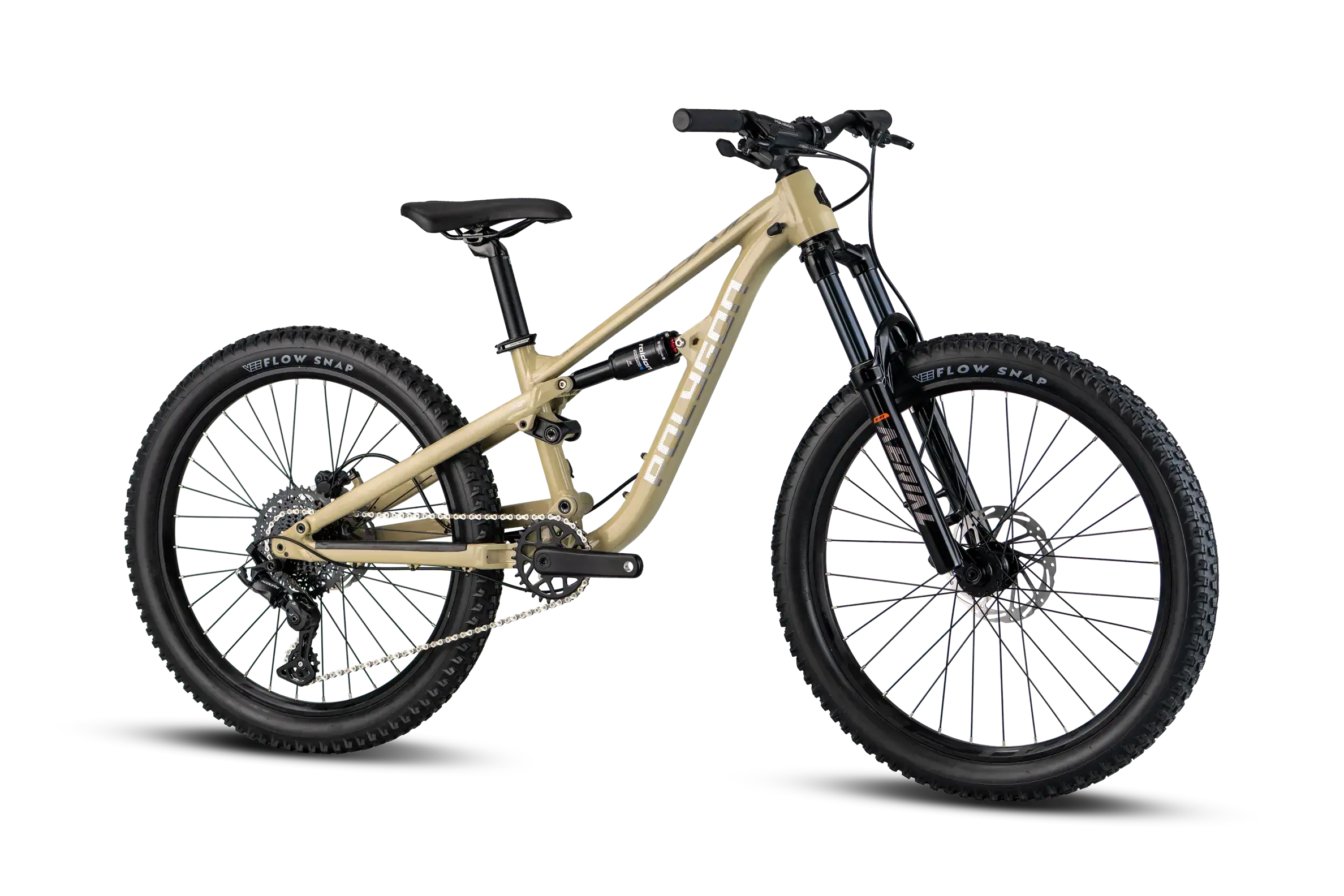

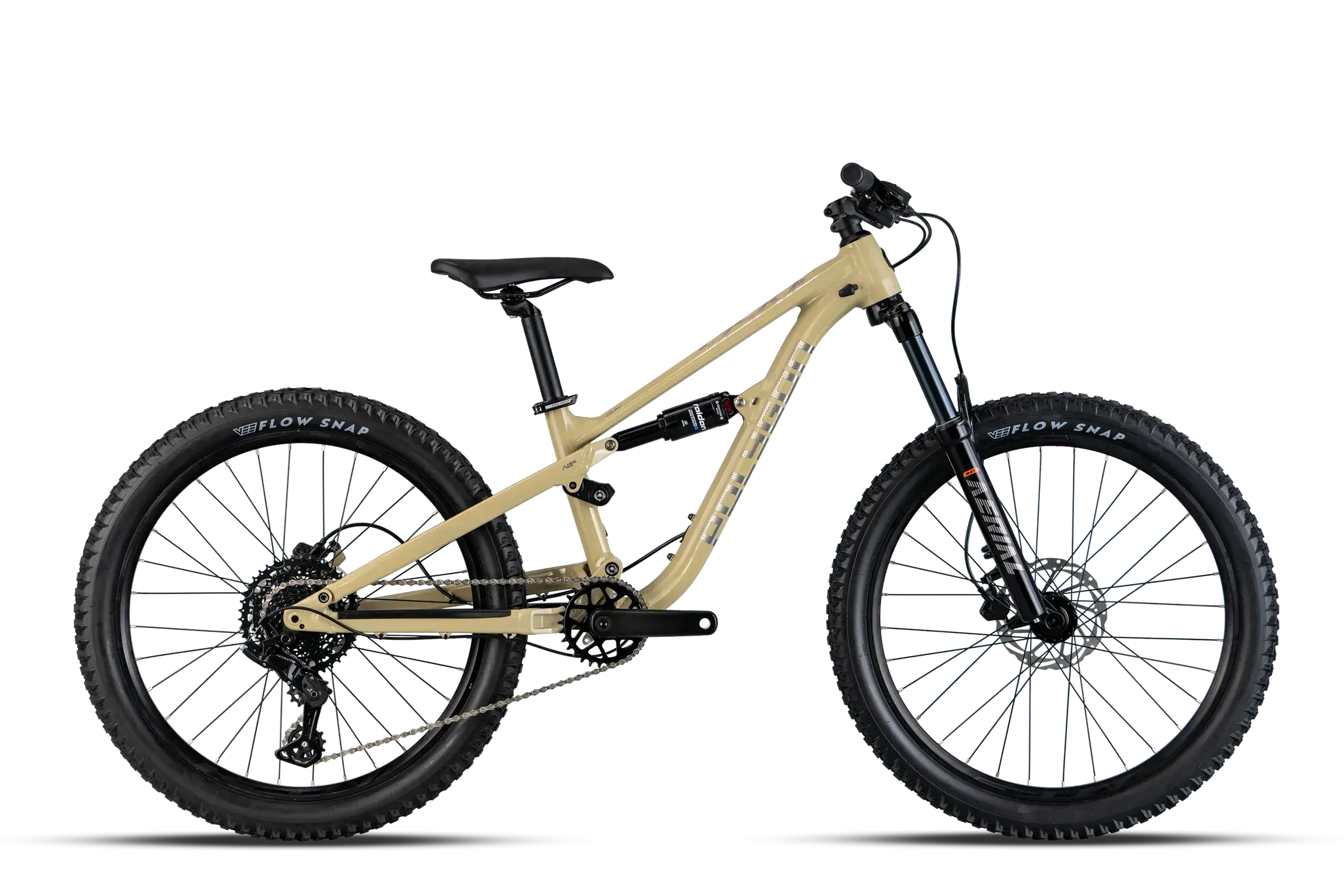

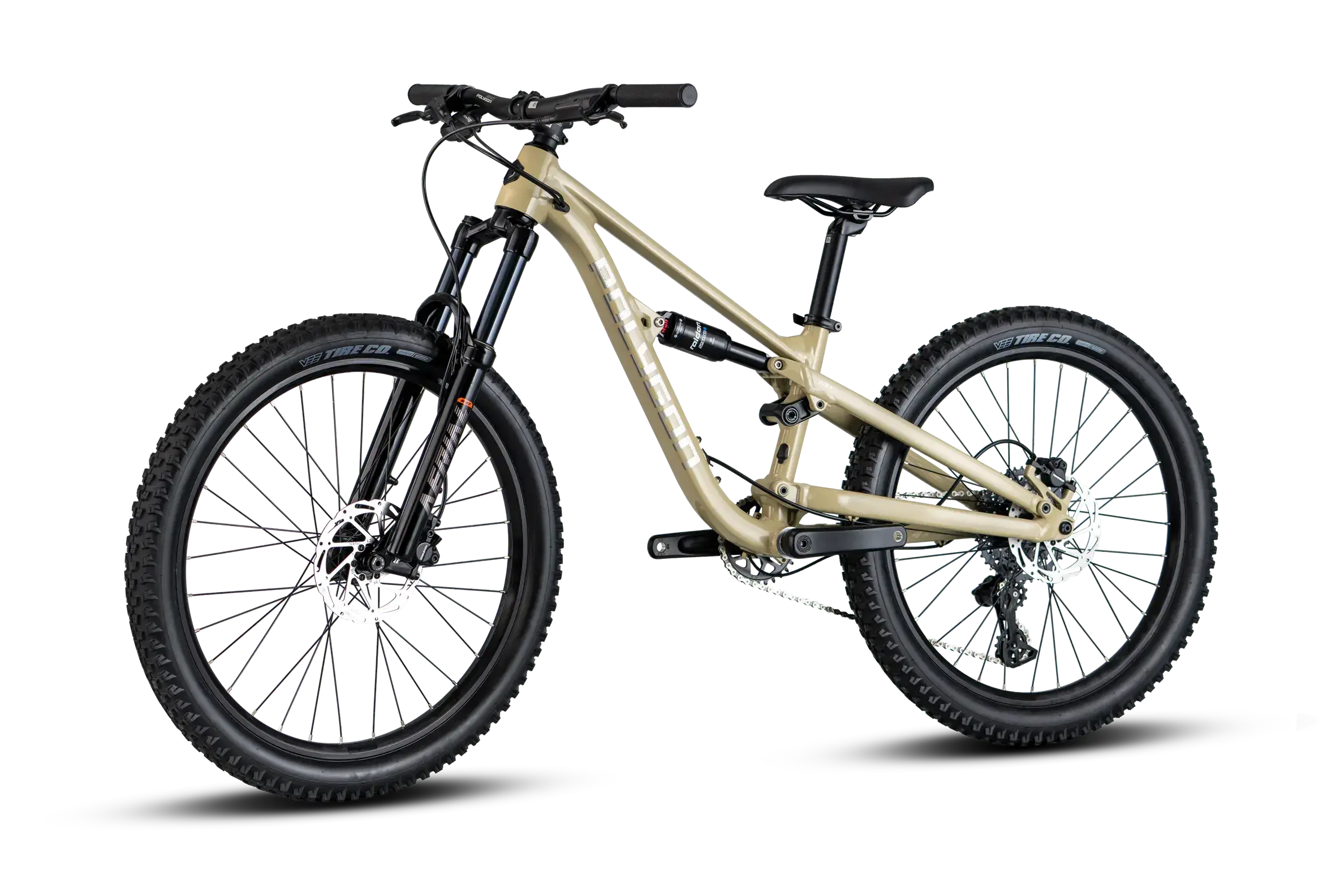

טבלת גיאומטריה - POLYGON Siskiu D24
נתוני גיאומטריה לפי מידה
| Geometry | All Size |
| A Seat Tube Length | 317 |
| B Seat Tube Angle | 73.5° |
| C Effective Seat Tube Angle | 75° |
| D Head Tube Length | 90 |
| E Head Tube Angle | 66° |
| F Effective Top Tube | 493.1 |
| G BB Height | 338 |
| H BB Offset | 10 |
| I Chainstay Length | 425 |
| J Wheelbase | 1053 |
| K Frame Reach | 350 |
| L Frame Stack | 534 |
| M Standover Height | 633 |
All Size
A Seat Tube Length317
B Seat Tube Angle73.5°
C Effective Seat Tube Angle75°
D Head Tube Length90
E Head Tube Angle66°
F Effective Top Tube493.1
G BB Height338
H BB Offset10
I Chainstay Length425
J Wheelbase1053
K Frame Reach350
L Frame Stack534
M Standover Height633
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
