טבלת גיאומטריה - POLYGON Rudge 3
נתוני גיאומטריה לפי מידה

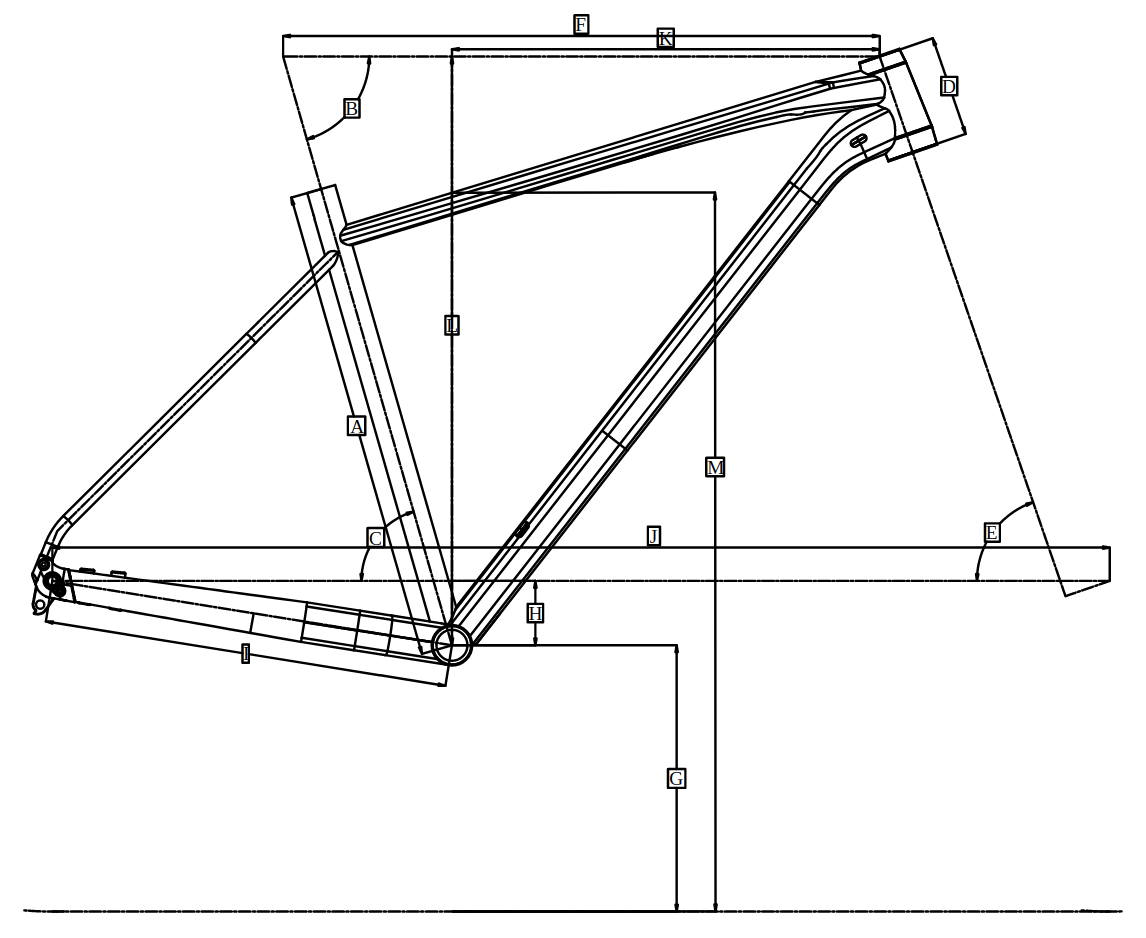

| Geometry | All Size |
| A Seat Tube Length | 209 |
| B Seat Tube Angle | 71° |
| C Effective Seat Tube Angle | 71° |
| D Head Tube Length | 100 |
| E Head Tube Angle | 74.5° |
| F Effective Top Tube | 525 |
| G BB Height | 300 |
| H BB Offset | 40 |
| I Chainstay Length | 340 |
| J Wheelbase | 885 |
| K Frame Reach | 401 |
| L Frame Stack | 361 |
| M Standover Height | 516 |
All Size
A Seat Tube Length209
B Seat Tube Angle71°
C Effective Seat Tube Angle71°
D Head Tube Length100
E Head Tube Angle74.5°
F Effective Top Tube525
G BB Height300
H BB Offset40
I Chainstay Length340
J Wheelbase885
K Frame Reach401
L Frame Stack361
M Standover Height516
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
