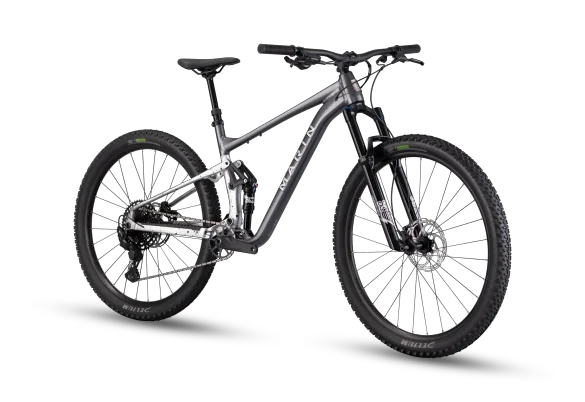

טבלת גיאומטריה - MARIN TAM 1
מידות שלדה ונתוני גיאומטריה לפי מידה

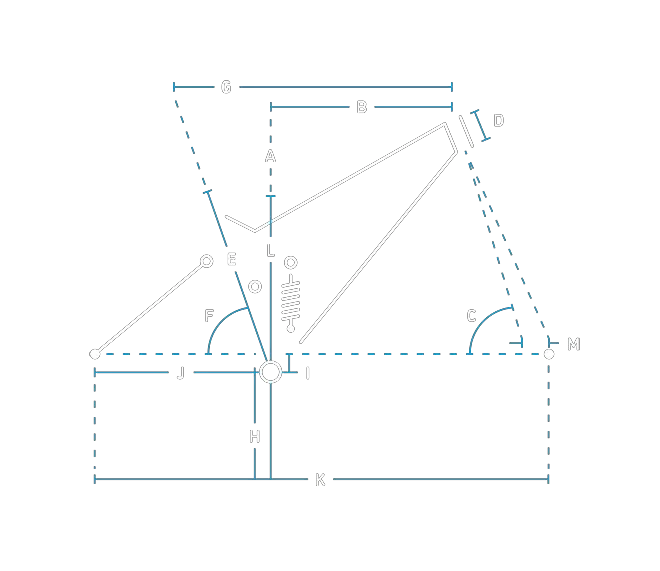

| Geometry | S | M | L | XL |
| A Stack | 593.8 | 603 | 612 | 621 |
| B Reach | 425 | 455 | 480 | 510 |
| C Headtube Angle | 65° | 65° | 65° | 65° |
| D Headtube Length | 90 | 100 | 110 | 120 |
| E Seattube Length | 400 | 410 | 450 | 500 |
| F Seattube Angle | 76° | 76° | 76° | 76° |
| G Toptube Effective | 562.7 | 595.7 | 623.7 | 656.7 |
| H BB Height | 333 | 333 | 333 | 333 |
| I BB Drop | 38 | 38 | 38 | 38 |
| J Chainstay | 435 | 435 | 435 | 435 |
| K Wheelbase | 1166 | 1200 | 1229.6 | 1263.7 |
| L Standover Height | 594 | 595 | 719 | 744 |
| M Fork Offset | 44 | 44 | 44 | 44 |
| N Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| O Handlebar Width | 780 | 780 | 780 | 780 |
| P Stem Length | 55 | 55 | 55 | 55 |
| Q Crank Length | 170 | 170 | 170 | 170 |
מידה S
A Stack593.8
B Reach425
C Headtube Angle65°
D Headtube Length90
E Seattube Length400
F Seattube Angle76°
G Toptube Effective562.7
H BB Height333
I BB Drop38
J Chainstay435
K Wheelbase1166
L Standover Height594
M Fork Offset44
N Seatpost Diameter30.9
O Handlebar Width780
P Stem Length55
Q Crank Length170
מידה M
A Stack603
B Reach455
C Headtube Angle65°
D Headtube Length100
E Seattube Length410
F Seattube Angle76°
G Toptube Effective595.7
H BB Height333
I BB Drop38
J Chainstay435
K Wheelbase1200
L Standover Height595
M Fork Offset44
N Seatpost Diameter30.9
O Handlebar Width780
P Stem Length55
Q Crank Length170
מידה L
A Stack612
B Reach480
C Headtube Angle65°
D Headtube Length110
E Seattube Length450
F Seattube Angle76°
G Toptube Effective623.7
H BB Height333
I BB Drop38
J Chainstay435
K Wheelbase1229.6
L Standover Height719
M Fork Offset44
N Seatpost Diameter30.9
O Handlebar Width780
P Stem Length55
Q Crank Length170
מידה XL
A Stack621
B Reach510
C Headtube Angle65°
D Headtube Length120
E Seattube Length500
F Seattube Angle76°
G Toptube Effective656.7
H BB Height333
I BB Drop38
J Chainstay435
K Wheelbase1263.7
L Standover Height744
M Fork Offset44
N Seatpost Diameter30.9
O Handlebar Width780
P Stem Length55
Q Crank Length170
הנתונים במ״מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
