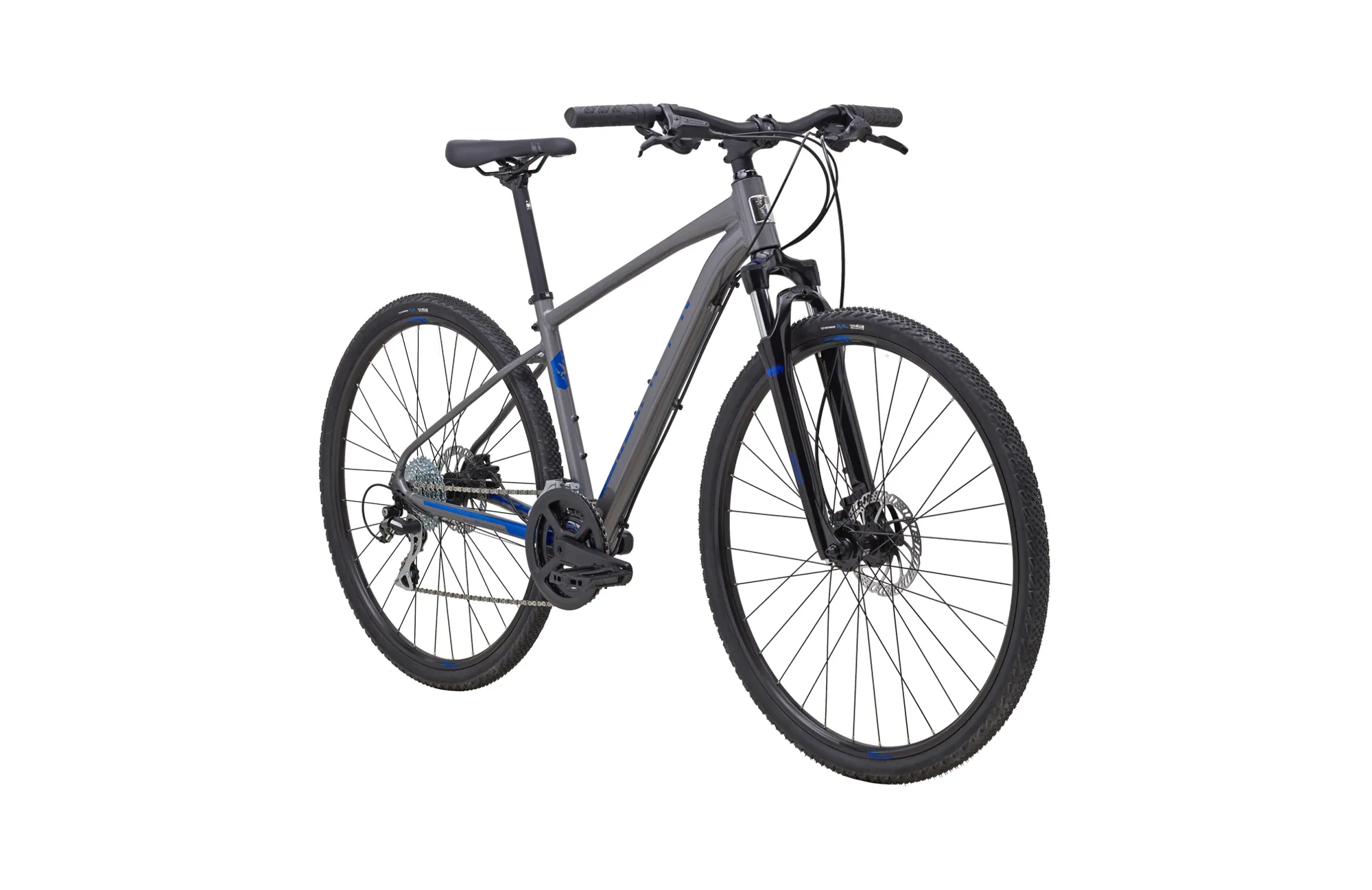

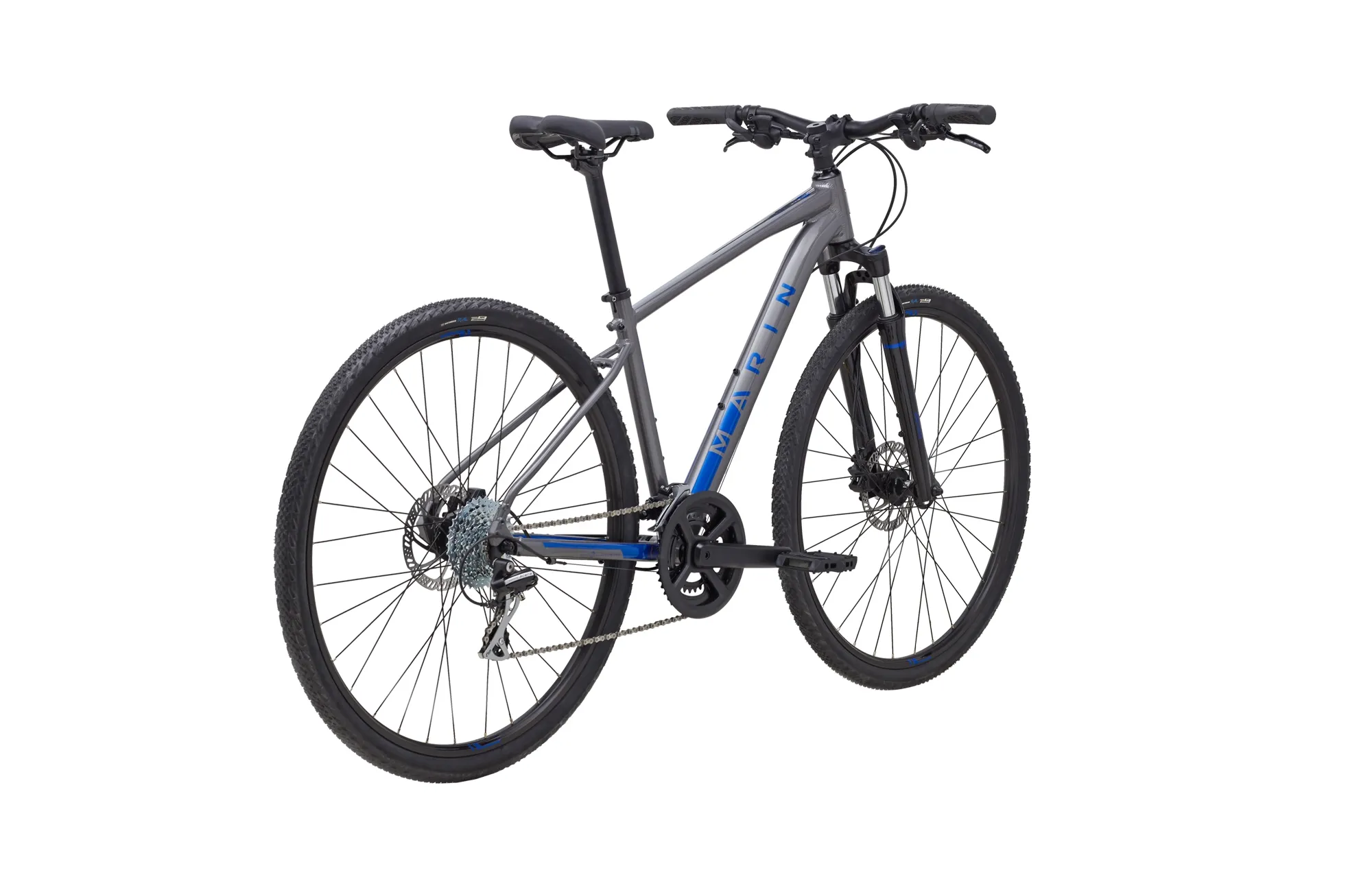

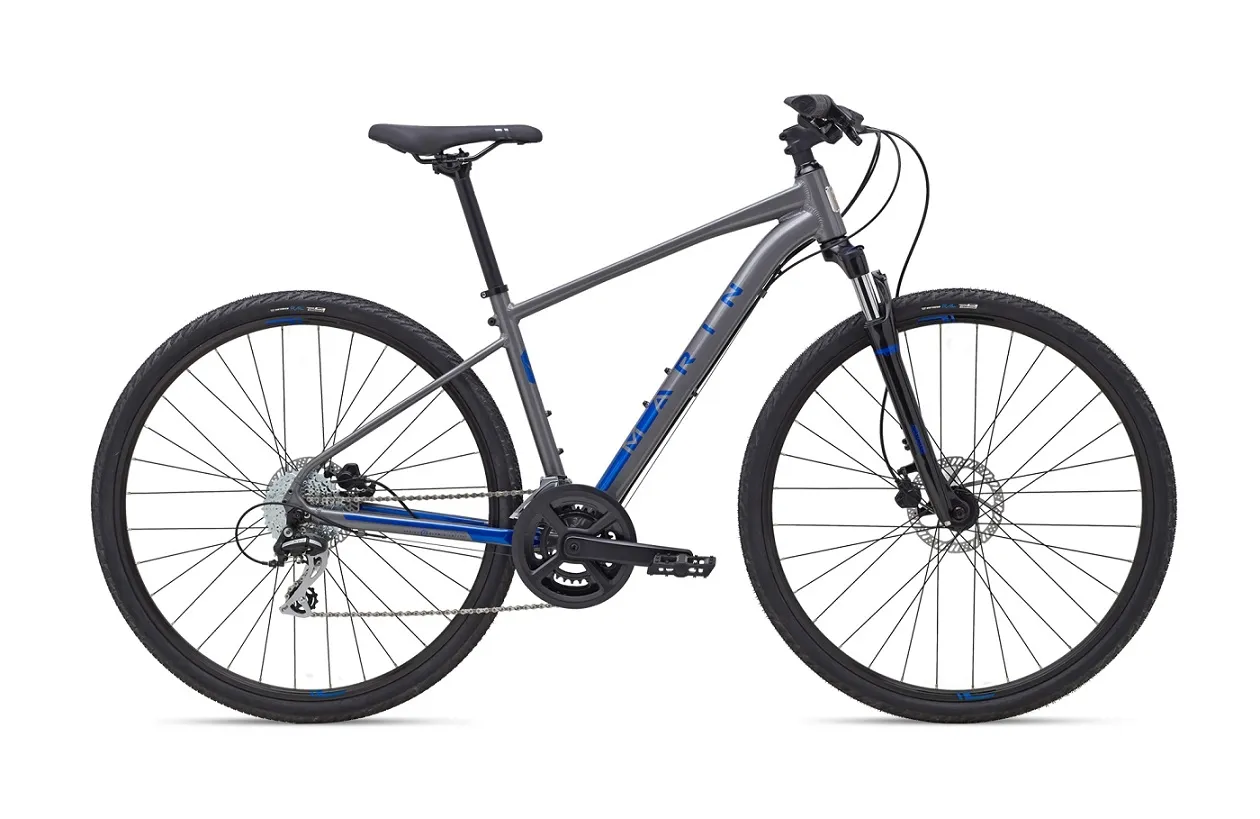

טבלת גיאומטריה - MARIN San Rafael DS2
נתוני גיאומטריה לפי מידה
| Geometry | XS | S | M | L | XL |
| A Stack | 588.99 | 598.41 | 607.85 | 621.99 | 640.84 |
| B Reach | 382.43 | 377.94 | 384.26 | 400.04 | 405.28 |
| C Headtube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D Headtube Length | 100 | 110 | 120 | 135 | 155 |
| E Seattube Angle | 73.5° | 73° | 73° | 73° | 73° |
| F Seattube Length | 381 | 431.8 | 482.6 | 520.7 | 558.8 |
| G Toptube Effective | 556.9 | 560.9 | 570.1 | 590.2 | 601.2 |
| H BB Height | 291 | 291 | 291 | 291 | 291 |
| I BB Drop | 60 | 60 | 60 | 60 | 60 |
| J Chainstay | 445 | 445 | 445 | 445 | 445 |
| K Wheelbase | 1054.19 | 1053.04 | 1062.7 | 1083.48 | 1095.39 |
| L Standover Height | 660 | 706.5 | 749.3 | 781.4 | 815 |
| M Fork Offset | 41 | 41 | 41 | 41 | 41 |
| N Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| O Handlebar Width | 680 | 680 | 680 | 700 | 700 |
| P Stem Length | 75 | 75 | 90 | 90 | 105 |
| Q Crank Length | 170 | 170 | 175 | 175 | 175 |
XS
A Stack588.99
B Reach382.43
C Headtube Angle70.5°
D Headtube Length100
E Seattube Angle73.5°
F Seattube Length381
G Toptube Effective556.9
H BB Height291
I BB Drop60
J Chainstay445
K Wheelbase1054.19
L Standover Height660
M Fork Offset41
N Seatpost Diameter27.2
O Handlebar Width680
P Stem Length75
Q Crank Length170
S
A Stack598.41
B Reach377.94
C Headtube Angle70.5°
D Headtube Length110
E Seattube Angle73°
F Seattube Length431.8
G Toptube Effective560.9
H BB Height291
I BB Drop60
J Chainstay445
K Wheelbase1053.04
L Standover Height706.5
M Fork Offset41
N Seatpost Diameter27.2
O Handlebar Width680
P Stem Length75
Q Crank Length170
M
A Stack607.85
B Reach384.26
C Headtube Angle70.5°
D Headtube Length120
E Seattube Angle73°
F Seattube Length482.6
G Toptube Effective570.1
H BB Height291
I BB Drop60
J Chainstay445
K Wheelbase1062.7
L Standover Height749.3
M Fork Offset41
N Seatpost Diameter27.2
O Handlebar Width680
P Stem Length90
Q Crank Length175
L
A Stack621.99
B Reach400.04
C Headtube Angle70.5°
D Headtube Length135
E Seattube Angle73°
F Seattube Length520.7
G Toptube Effective590.2
H BB Height291
I BB Drop60
J Chainstay445
K Wheelbase1083.48
L Standover Height781.4
M Fork Offset41
N Seatpost Diameter27.2
O Handlebar Width700
P Stem Length90
Q Crank Length175
XL
A Stack640.84
B Reach405.28
C Headtube Angle70.5°
D Headtube Length155
E Seattube Angle73°
F Seattube Length558.8
G Toptube Effective601.2
H BB Height291
I BB Drop60
J Chainstay445
K Wheelbase1095.39
L Standover Height815
M Fork Offset41
N Seatpost Diameter27.2
O Handlebar Width700
P Stem Length105
Q Crank Length175
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
