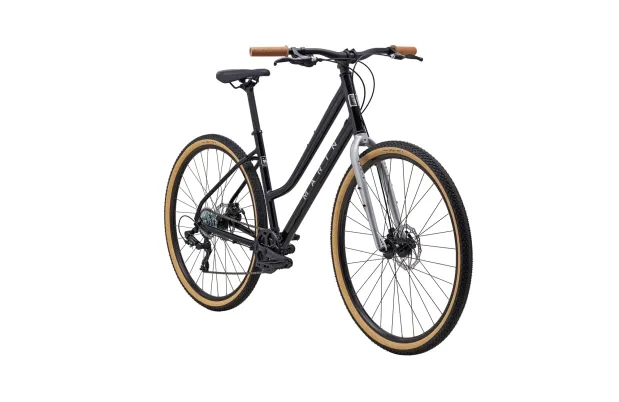

טבלת גיאומטריה - MARIN Kentfield 1 ST
נתוני גיאומטריה לפי מידה
| Geometry | S | M | L |
| A Stack | 615 | 633.6 | 648.4 |
| B Reach | 375 | 380 | 400 |
| C Headtube Angle | 70° | 70° | 70° |
| D Headtube Length | 170 | 190 | 205 |
| E Seattube Length | 381 | 422 | 462 |
| F Seattube Angle | 73.5° | 73.5° | 73.5° |
| G Toptube Effective | 557 | 567.7 | 591.9 |
| H BB Height | 294.5 | 294.5 | 294.5 |
| I BB Drop | 70 | 70 | 70 |
| J Chainstay | 450 | 450 | 450 |
| K Wheelbase | 1071 | 1082.9 | 1108 |
| L Standover Height | 499 | 510.61 | 523.8 |
| M Fork Offset | 50 | 50 | 50 |
| N Seatpost Diameter | 27.2 | 27.2 | 27.2 |
| O Handlebar Width | 680 | 680 | 740 |
| P Stem Length | 45 | 45 | 45 |
| Q Crank Length | 170 | 170 | 175 |
S
A Stack615
B Reach375
C Headtube Angle70°
D Headtube Length170
E Seattube Length381
F Seattube Angle73.5°
G Toptube Effective557
H BB Height294.5
I BB Drop70
J Chainstay450
K Wheelbase1071
L Standover Height499
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width680
P Stem Length45
Q Crank Length170
M
A Stack633.6
B Reach380
C Headtube Angle70°
D Headtube Length190
E Seattube Length422
F Seattube Angle73.5°
G Toptube Effective567.7
H BB Height294.5
I BB Drop70
J Chainstay450
K Wheelbase1082.9
L Standover Height510.61
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width680
P Stem Length45
Q Crank Length170
L
A Stack648.4
B Reach400
C Headtube Angle70°
D Headtube Length205
E Seattube Length462
F Seattube Angle73.5°
G Toptube Effective591.9
H BB Height294.5
I BB Drop70
J Chainstay450
K Wheelbase1108
L Standover Height523.8
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width740
P Stem Length45
Q Crank Length175
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
