טבלת גיאומטריה - MARIN DSX 2 2025
נתוני גיאומטריה לפי מידה

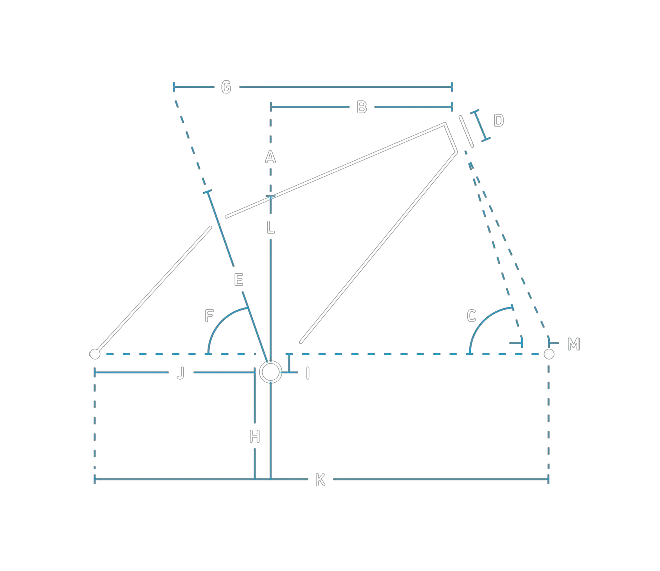

| Geometry | S | M | L | XL |
| A Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| B Reach | 380 | 405 | 420 | 435 |
| C Headtube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| D Headtube Length | 120 | 150 | 180 | 210 |
| E Seattube Length | 430 | 480 | 520 | 558 |
| F Seattube Angle | 74° | 74° | 74° | 74° |
| G Toptube Effective | 536.1 | 569.2 | 592.2 | 615.3 |
| H BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
| I BB Drop | 80 | 80 | 80 | 80 |
| J Chainstay | 425 | 425 | 425 | 425 |
| K Wheelbase | 1024.42 | 1060 | 1085.4 | 1110.9 |
| L Standover Height | 658.76 | 700.51 | 730.39 | 758.5 |
| M Fork Offset | 50 | 50 | 50 | 50 |
| N Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| O Handlebar Width | 640 | 680 | 680 | 680 |
S
A Stack544.4
B Reach380
C Headtube Angle69.5°
D Headtube Length120
E Seattube Length430
F Seattube Angle74°
G Toptube Effective536.1
H BB Height279.5
I BB Drop80
J Chainstay425
K Wheelbase1024.42
L Standover Height658.76
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width640
M
A Stack572.5
B Reach405
C Headtube Angle69.5°
D Headtube Length150
E Seattube Length480
F Seattube Angle74°
G Toptube Effective569.2
H BB Height279.5
I BB Drop80
J Chainstay425
K Wheelbase1060
L Standover Height700.51
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width680
L
A Stack600.6
B Reach420
C Headtube Angle69.5°
D Headtube Length180
E Seattube Length520
F Seattube Angle74°
G Toptube Effective592.2
H BB Height279.5
I BB Drop80
J Chainstay425
K Wheelbase1085.4
L Standover Height730.39
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width680
XL
A Stack628.7
B Reach435
C Headtube Angle69.5°
D Headtube Length210
E Seattube Length558
F Seattube Angle74°
G Toptube Effective615.3
H BB Height279.5
I BB Drop80
J Chainstay425
K Wheelbase1110.9
L Standover Height758.5
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width680
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
