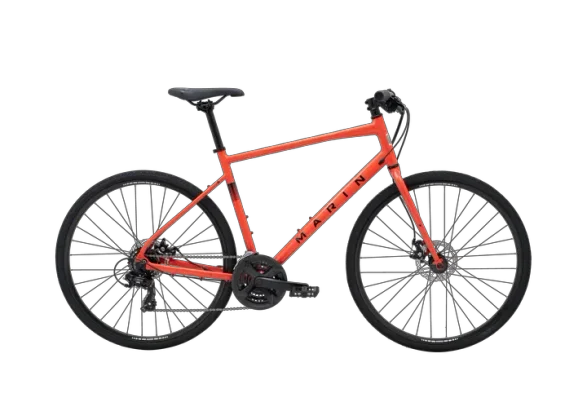

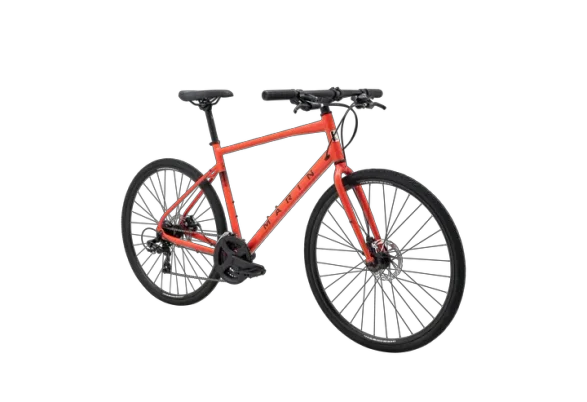

טבלת גיאומטריה - MARIN Fairfax 1
נתוני גיאומטריה לפי מידה
| Geometry | M | L | XL |
| A Stack | 590 | 609 | 637.3 |
| B Reach | 420 | 440 | 455 |
| C Headtube Angle | 70.5° | 70.5° | 70.5° |
| D Headtube Length | 175 | 195 | 225 |
| E Seattube Length | 480 | 520 | 550 |
| F Seattube Angle | 73.5° | 73.5° | 73.5° |
| G Toptube Effective | 594.8 | 620.4 | 643.8 |
| H BB Height | 283.5 | 283.5 | 283.5 |
| I BB Drop | 70 | 70 | 70 |
| J Chainstay | 445 | 445 | 445 |
| K Wheelbase | 1096.7 | 1123.4 | 1148.4 |
| L Standover Height | 745.2 | 780.34 | 809.68 |
| M Fork Offset | 50 | 50 | 50 |
| N Seatpost Diameter | 27.2 | 27.2 | 27.2 |
| O Handlebar Width | 680 | 680 | 680 |
| P Stem Length | 70 | 70 | 70 |
| Q Crank Length | 175 | 175 | 175 |
M
A Stack590
B Reach420
C Headtube Angle70.5°
D Headtube Length175
E Seattube Length480
F Seattube Angle73.5°
G Toptube Effective594.8
H BB Height283.5
I BB Drop70
J Chainstay445
K Wheelbase1096.7
L Standover Height745.2
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width680
P Stem Length70
Q Crank Length175
L
A Stack609
B Reach440
C Headtube Angle70.5°
D Headtube Length195
E Seattube Length520
F Seattube Angle73.5°
G Toptube Effective620.4
H BB Height283.5
I BB Drop70
J Chainstay445
K Wheelbase1123.4
L Standover Height780.34
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width680
P Stem Length70
Q Crank Length175
XL
A Stack637.3
B Reach455
C Headtube Angle70.5°
D Headtube Length225
E Seattube Length550
F Seattube Angle73.5°
G Toptube Effective643.8
H BB Height283.5
I BB Drop70
J Chainstay445
K Wheelbase1148.4
L Standover Height809.68
M Fork Offset50
N Seatpost Diameter27.2
O Handlebar Width680
P Stem Length70
Q Crank Length175
הנתונים במ"מ אלא אם צוין אחרת. מומלץ לוודא התאמת מידה סופית לפי גובה, סגנון רכיבה והעדפה אישית.
